OPTIONAL MODULE · STATISTICAL QUALITY CONTROL

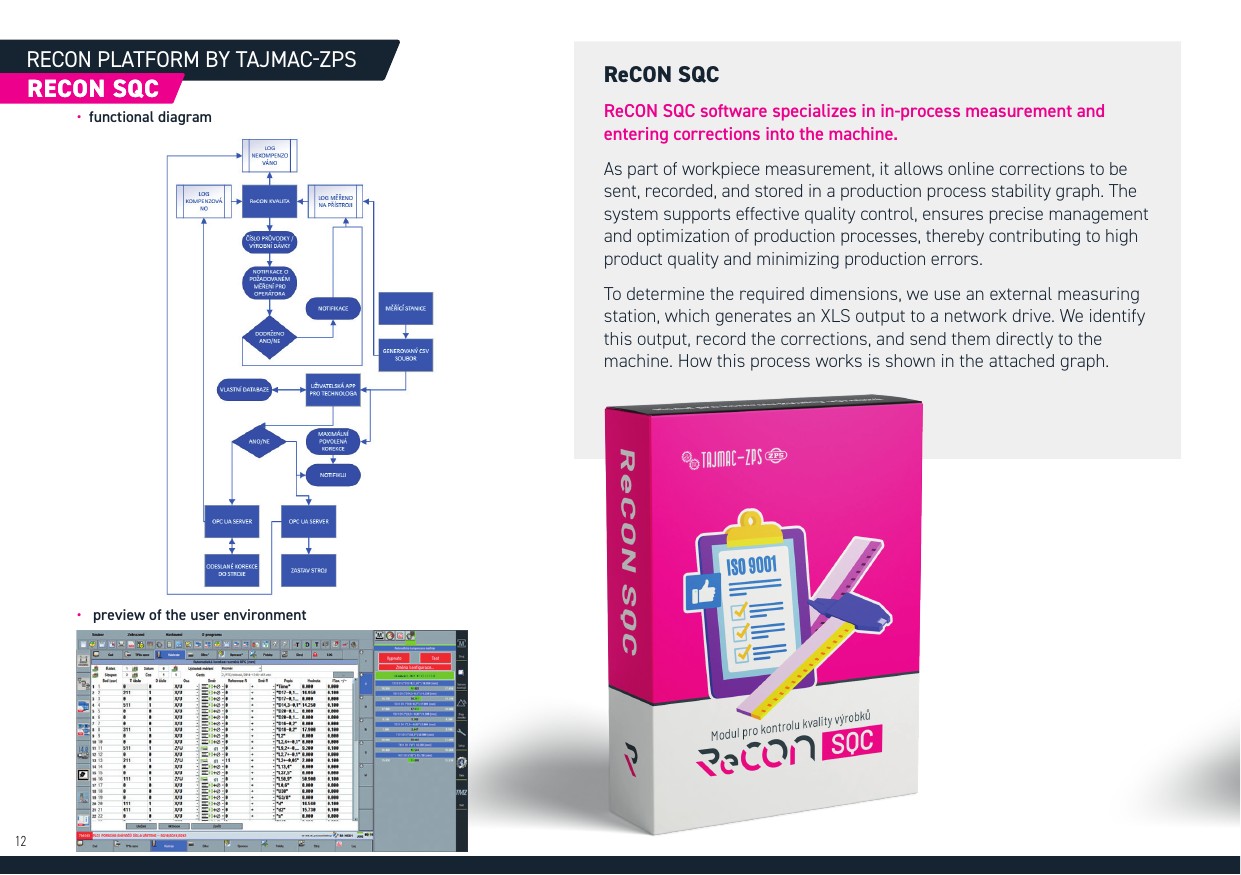

ReCON SQC – statistical quality control and real-time tool offsets
In-process measurement and real-time tool offset entry into the machine
As part of workpiece measurement, enables sending online tool offsets, logging them, and storing measurement data in a production process stability chart.
A deviation detected only during final inspection results in finished scrap. SQC operates continuously: an external measuring station generates output, the system identifies it, records the tool offset, and sends it directly to the machine. At the same time, measured data is stored in the manufacturing process stability chart.
Key benefits
- Immediate identification of dimensional deviations from an external measuring station
- Automatic calculation of Cp and Cpk statistical indices
- Scrap prevention through automatic tool offset adjustment
How SQC works
- In-process measurement and entering tool offsets into the machine based on the measured part
- External measuring station generates an XLS output to a network drive
- We identify the output, log the tool offset, and send it directly to the machine
- Measurement data is saved to the production process stability chart
- Statistical quality control increases manufacturing precision and minimizes errors
Who the module is for
- Quality inspector – measurements and deviations in one place
- Operator – tool offsets without manual entry
- Manufacturing engineer – process stability chart and Cp, Cpk indicators
Deployment prerequisites
- Machine connected via ReCON CONNECT with write access to the control system
- External measuring station generating XLS output to a network drive
Availability
Optional module beyond the base package; price according to installation scope.
